Platino JR
Cash Recycler

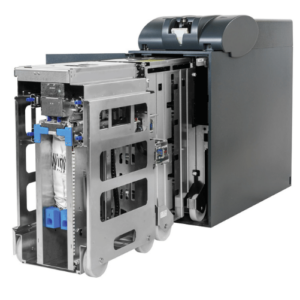

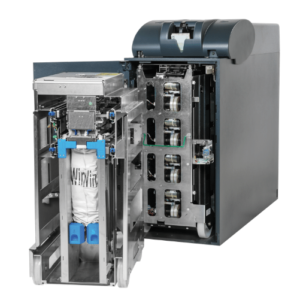

PLATINO JR is CIMA’s medium to high capacity back-office note recycling solution for retailers or venues with higher note requirements. Made up of our AST7008S note recycler, the PLATINO JR solution is affordable with all the functionality you would expect from a complete back-office cash recycling solution. Driven by our flexible CAOS device operating system, retailers can customize how the system works specifically in their environments. The AST7008S note recycler utilizes 8 x roll storage modules (RSM) for recycling.  Each RSM can hold up to 500 notes of a single denomination making it ideal for stores or environments where note volumes are high. The number of RSMs makes the configurability of the note recycler very flexible.  There are 8 x RSMs providing a total recycling capacity of up to 4,000 notes. The AST7008S has a unique self-sealing, stacking bag system for up to 3,000 surplus notes.  This eliminates the need for cassettes and allows CIT operators to pick up cash quickly without having to open cassettes in-store.


  • Customize till floats and denomination mixes specifically for user types
  • Fast and easy end-of-day cash-up process. Simply stack notes into the note feeder
  • Reduce errors by automating the dispense and deposit process
  • Recycling reduces overall store cash requirements
  • Reduce shrink with quick reconciliation to third party applications

Platino JR Cash Recycler

AST7008S Technical Specifications

Deposit Speed:

Up to 6 notes / second

Withdrawal Speed:

Up to 6 notes / second

Recycling Technology:

Roll Storage Modules (RSM)

Deposit Technology:

Heat Sealing Stacking Bag

Number of RSMs:


Notes per RSM:

Up to 500 notes*

Total Recycling Capacity:

Up to 4,000 notes*

Total Deposit Capacity:

Up to 3,000 notes

Connection Type:

Ethernet or RS232 Serial Ports or USB 1.0 Port

Bill Validator:

  • CIMA BV5000
  • Compliant with US Federal Reserve Standards
  • Multi-currency capable

Safe and Security:

12 mm (UL 291), CEN L, CEN III, CEN IV


  • Voltage 90 – 240V AC
  • Frequency 50 – 60Hz
  • Power input 600W

Platino JR Cash Recycler

AST7008S Note Recycler Only


440mm (17.32in)


1,055mm (41.54in)


957mm (37.68in)

(Plinth to raise height optional)
